Emergency Repair Clamp

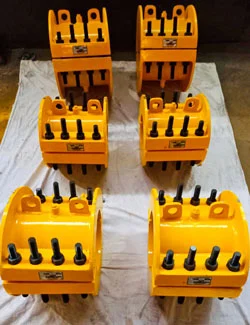

The TRITORC Split Sleeve Repair Clamp (SSRC Series) is an economical, bolt-together solution designed for both temporary and permanent pipeline repairs. Its two-half sleeves forms a high-integrity pressure vessel around damaged pipeline sections. Engineered for quick deployment, the SSRC clamp ensures safe and quick sealing performance. It also reduces downtime, making it an appropriate choice for emergency and planned pipeline maintenance.
Overview
These clamps are intended for short-term use to quickly restore functionality and minimize service downtime. A full-scale, permanent repair should follow to ensure long-term reliability of the system
Technical Specification
| Category | Specifications | |
|---|---|---|

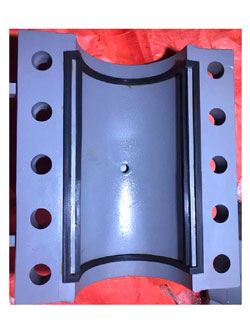

| Sealing Mechanism | Premium elastomer seals compatible with pipeline product and operating temperature. Continuous pressure barrier formed by two circumferential and two longitudinal seals. Pre-compressed seal design for easy field replacement without factory repairs. | |
| Manufacturing Standards | Designed and tested per ASME Section VIII Division 1 & 2 specifications. Optional venting ports (½” or 1″) based on client requirements. | |
| Shell and Side Bar | ASTM A105, A106, A516, A216 Gr. WCB Casting or equivalent. | |
| Fasteners | ASTM A193 B7 / ASTM A194 2H with standard or PTFE coating. | |
| Seals | High-grade Nitrile Rubber (Buna N / Viton); special materials available on request. | |
| Coating | Topside Applications: Red Oxide coating. Subsea Applications: Marine-grade Yellow with cathodic protection via sacrificial anodes. | |
Frequently Asked Questions
What pipelines is it compatible with?
It works with pipelines carrying oil, gas, water, and other industrial fluids.
How does it seal?
Using high-quality elastomer seals, it ensures a secure, leak-proof barrier around the damage.
What testing standards are followed?

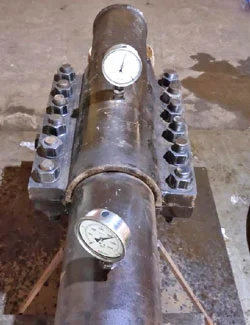

All clamps are tested to ASME Section VIII Division 1&2 and hydrostatically pressure-tested at 1.5x working pressure.
What pressure ratings can the Emergency Pipeline Repair Clamp handle?
The SSRC is hydrostatically tested at 1.5x the rated working pressure to ensure high-performance reliability in various pipeline applications.
Can seals be replaced onsite?
Yes, the seal design allows for easy field replacement.
How can I order it?
Provide pipeline details to TRITORC for expert recommendations or custom designs.
Is it suitable for subsea use?

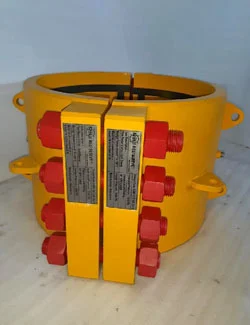

Yes, with marine-grade coatings and sacrificial anodes for cathodic protection.
Can the clamp accommodate different pipeline materials and sizes?
Yes, the clamp is customizable to fit a wide range of pipeline materials, including carbon steel and stainless steel, and sizes, as per client specifications.
