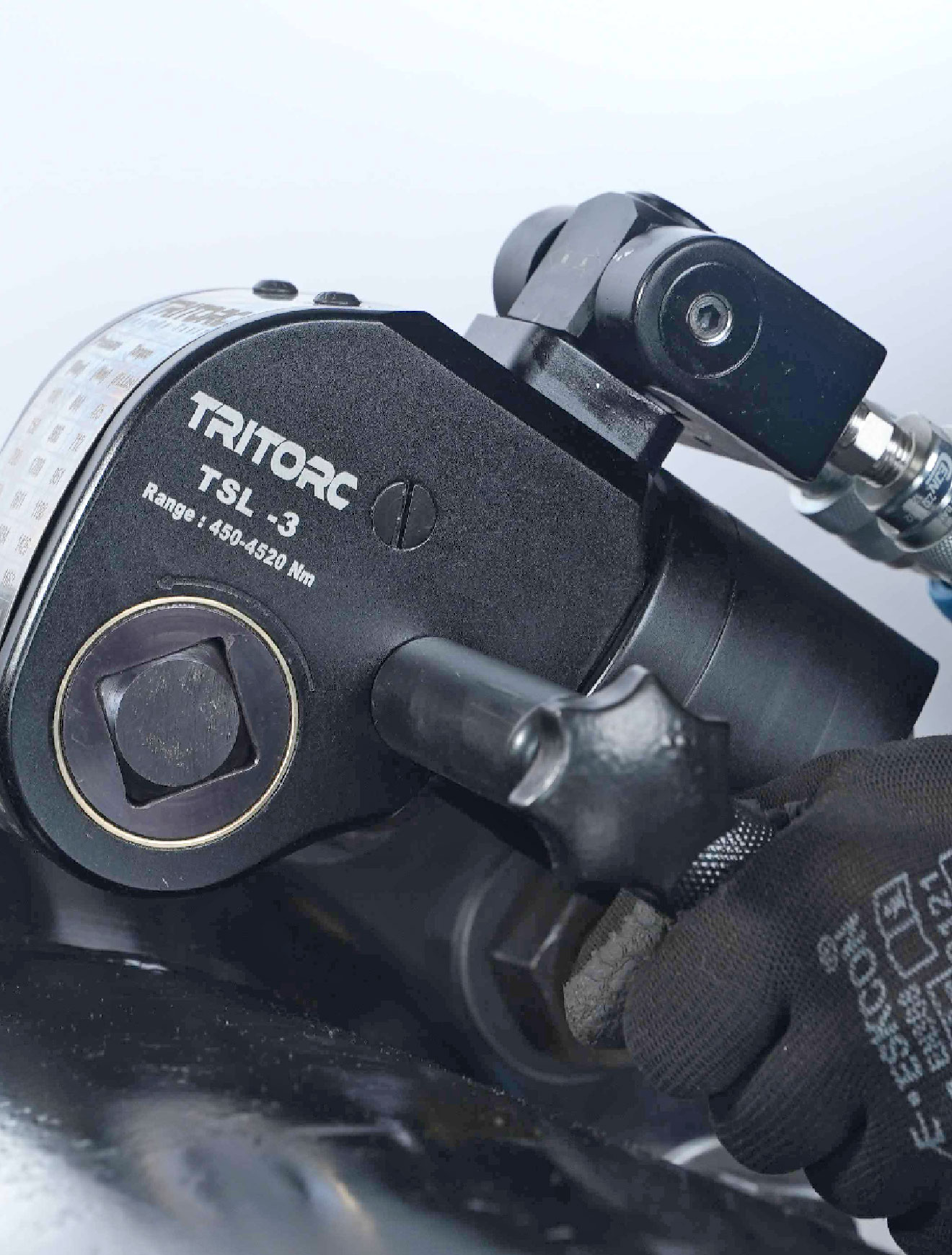

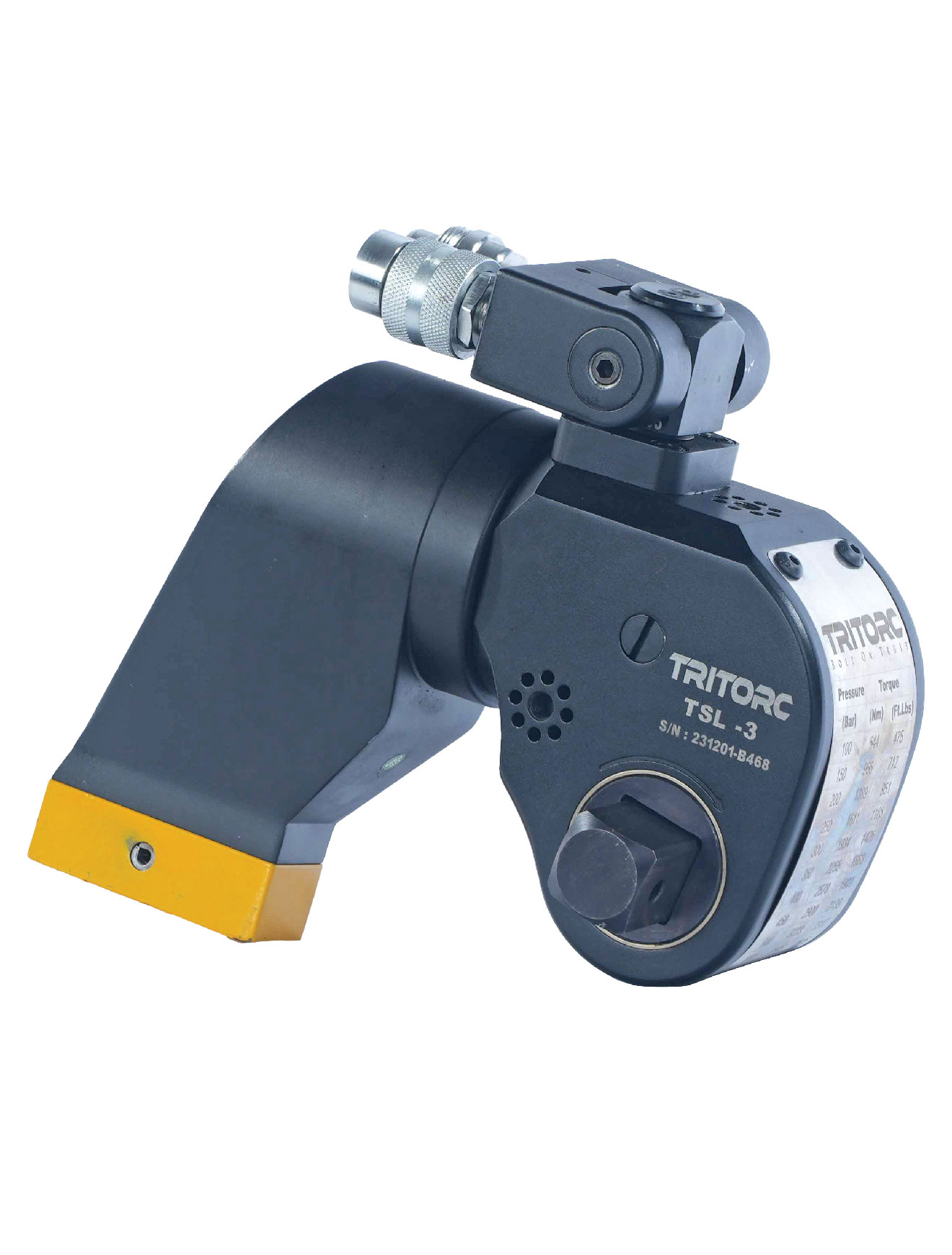

Square Drive Type – TSL Series
The TSL Series Square Drive Hydraulic Torque Wrench delivers accurate, repeatable torque for heavy-duty bolting in global industrial sectors. Designed for reliability and strength, it handles diverse applications in wind turbines, mining, and infrastructure, ensuring consistent torque performance under high-load and high-pressure conditions.
The TSL Series Square Drive Hydraulic Torque Wrench delivers accurate, repeatable torque for heavy-duty bolting in global industrial sectors. Designed for reliability and strength, it handles diverse applications in wind turbines, mining, and infrastructure, ensuring consistent torque performance under high-load and high-pressure conditions.
Overview
Engineered for demanding bolting jobs, the TSL Series hydraulic torque wrench features a square drive mechanism compatible with various sockets, making it suitable for industries like wind energy, mining, and heavy equipment maintenance. Its high-strength aluminium body, ergonomic design, and dual-hose swivel allow easy handling and durability. Whether on a turbine, platform, or processing plant, the TSL Series supports global operations with performance, precision, and operator safety.
Use Cases Across Key Industries
Technical Specification
| Technical Data | TSL-07 | TSL-1 | TSL-3 | TSL-5 | TSL-8 | TSL-10 | TSL-15 | TSL-20 | TSL-25 | TSL-35 | TSL-50 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Sq. Dr. | 3/4″ | 3/4″ | 1″ | 1.1/2″ | 1.1/2″ | 1.1/2″ | 2.1/2″ | 2.1/2″ | 2.1/2″ | 2.1/2″ | 2.1/2″ | |
| Min. Torque | Nm (Ft. Lbs.) | 112 (81) | 183 (134) | 450 (328) | 737 (536) | 1078 (783) | 1551 (1054) | 2243 (1654) | 2719 (1976) | 3472 (2523) | 4866 (3535) | 6925 (5030) |
| Max. Torque | Nm (Ft. Lbs.) | 1120 (814) | 1837 (1344) | 4500 (3278) | 7379 (5361) | 10780 (7831) | 15519 (10540) | 23201 (16547) | 27197 (19757) | 34725 (25226) | 48666 (35354) | 69247 (50300) |
| Tool Weight | Kg. (Lbs.) | 1.8 (3.9) | 2.5 (5.5) | 4.9 (10.8) | 9.5 (20.9) | 10.8 (23.8) | 14.7 (32.4) | 23 (50.7) | 26 (57.3) | 35 (77.1) | 50 (110.2) | 65 (143.3) |
| Dimensional Data | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit | TSL-07 | TSL-1 | TSL-3 | TSL-5 | TSL-8 | TSL-10 | TSL-15 | TSL-20 | TSL-25 | TSL-35 | TSL-50 | |
| Body Length (L1) | mm (inch) | 117 (4.61) | 143 (5.63) | 178 (7.01) | 213 (8.39) | 226 (8.90) | 246 (9.69) | 272 (10.71) | 309 (12.17) | 325 (12.80) | 372 (14.65) | 387 (15.24) |
| Overall Length (L2) | mm (inch) | 139 (5.47) | 171 (6.73) | 228 (8.98) | 275 (10.83) | 292 (11.50) | 317 (12.48) | 352 (13.86) | 387 (15.24) | 402 (15.83) | 466 (18.35) | 518 (20.39) |
| Tool Width (H1) | mm (inch) | 42 (1.65) | 52 (2.05) | 69.5 (2.74) | 82.5 (3.25) | 84 (3.31) | 102 (4.02) | 111 (4.37) | 128 (5.04) | 136.5 (5.37) | 153 (6.02) | 167.5 (6.59) |
| OverallWidth (H2) | mm (inch) | 67 (2.64) | 75 (2.95) | 97 (3.82) | 122 (4.80) | 132 (5.20) | 141 (5.55) | 185 (7.28) | 203 (7.99) | 207 (8.15) | 226 (8.90) | 239 (9.41) |
| Tool Height (H3) | mm (inch) | 80 (3.15) | 96 (3.78) | 127 (5.00) | 149 (5.87) | 168 (6.61) | 182 (7.17) | 197 (7.76) | 213 (8.39) | 252 (9.92) | 283 (11.14) | 301 (11.85) |
| OverallHeight (H4) | mm (inch) | 117 (4.61) | 133 (5.24) | 177 (6.97) | 199 (7.83) | 218 (8.58) | 232 (9.13) | 247 (9.72) | 262 (10.31) | 301 (11.85) | 333 (13.11) | 351 (13.82) |
| Tool Radius (R1) | mm (inch) | 21.5 (0.85) | 26.3 (1.04) | 34.5 (1.36) | 39 (1.54) | 47 (1.85) | 51 (2.01) | 57.5 (2.26) | 59 (2.32) | 66 (2.60) | 77.5 (3.05) | 80.5 (3.17) |
| ReactionReach(R2) | mm (inch) | 67 (2.64) | 84 (3.31) | 111 (4.37) | 140 (5.51) | 148 (5.83) | 153 (6.02) | 170 (6.69) | 187 (7.36) | 202 (7.95) | 241 (9.49) | 258 (10.16) |
Frequently Asked Questions
What is the maximum torque output of the TSL Series Hydraulic Torque Wrench?
The TSL Series can deliver high torque output suitable for a wide range of industrial bolting applications, depending on the specific model. Please refer to the technical specifications for precise values.
What industries is the TSL Series best suited for?
Can the TSL Series be used in confined spaces?
What makes the TSL Series different from other hydraulic torque wrenches?
Is the TSL Series easy to maintain?
Does the TSL Series come with a warranty?
What is the material composition of the TSL Series?
Can the TSL Series handle continuous use in extreme conditions?
