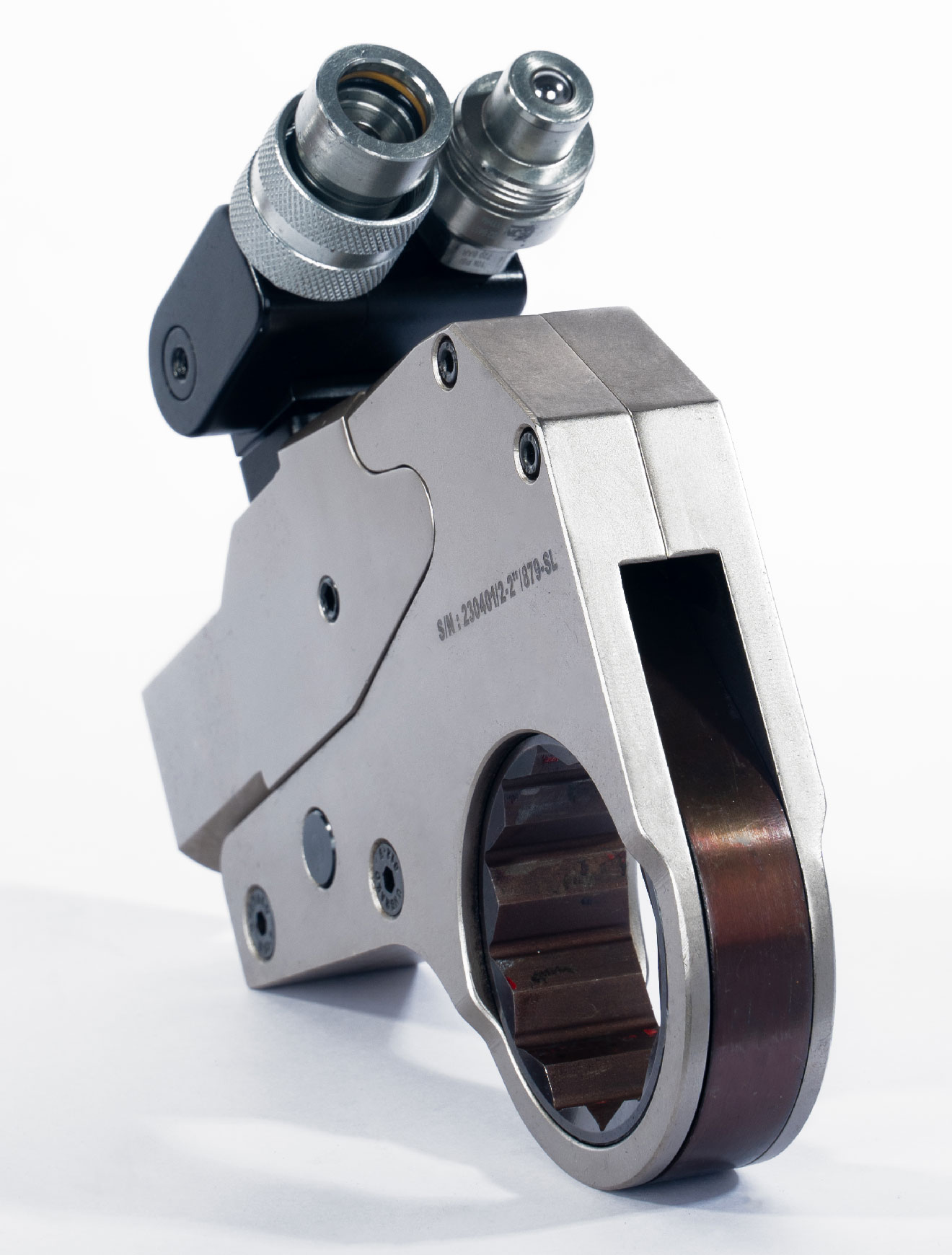

Low Profile Ultra Slim Type – THL Series
Our THL Series Ultra Slim Hydraulic Torque Wrench delivers high-precision torque in confined bolting zones. Engineered for heavy-duty industries, it combines compact design, ±3% torque accuracy, and robust alloy construction to ensure safe, reliable performance in high-stress environments where accessibility, durability, and operator safety are critical.
Our THL Series Ultra Slim Hydraulic Torque Wrench delivers high-precision torque in confined bolting zones. Engineered for heavy-duty industries, it combines compact design, ±3% torque accuracy, and robust alloy construction to ensure safe, reliable performance in high-stress environments where accessibility, durability, and operator safety are critical.
Overview

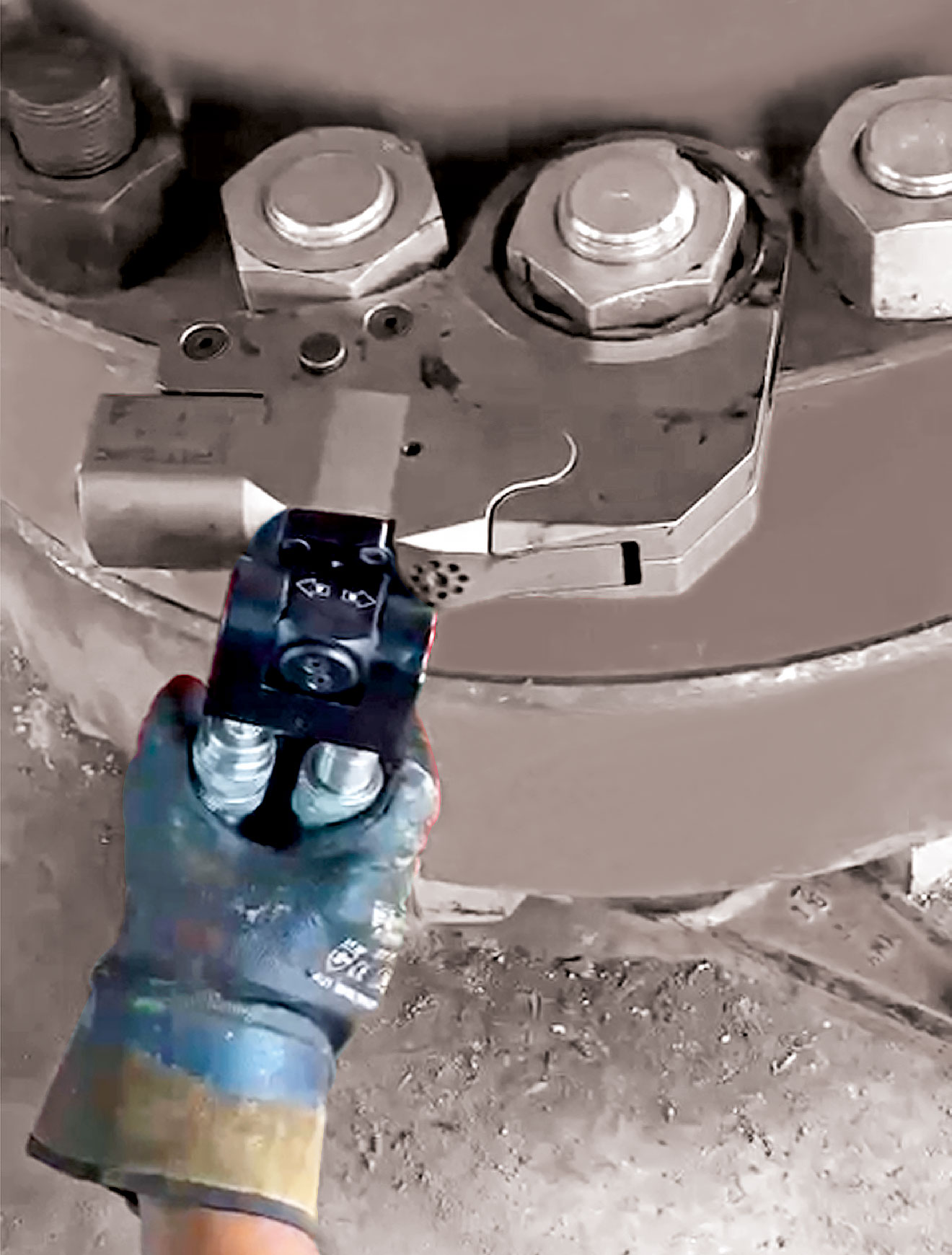

The THL Series Ultra Slim Hydraulic Torque Wrench from Tritorc tackles bolting jobs in tight, restricted spaces with ease. Engineered for precision and built with high-strength alloys, it delivers accurate torque in critical operations. Its compact profile, corrosion resistance, and swivel hose connection boost accessibility and durability. Tritorc backs every tool with expert application support, ensuring reliable performance across power, oil & gas, aerospace, and heavy industries.
Technical Specification
| Power Head | Unit | Torque Range | Hex Size mm (inch) | L mm (inch) | H mm (inch) | WL mm (inch) | WT mm (inch) | Radius | |
|---|---|---|---|---|---|---|---|---|---|
| Min | Max | ||||||||
| THL-2 | Ft.Lbs Nm | 214 293 | 2217 3051 | 36.51 (l -7/16) | 1 35 (-5.31) | 101 (-3.97) | 25.5 (1 .00) | 34.4 (1 .35) | 8.9 (-0.35) |
| 31.75 (1-1/4) | 135 (-5.31) | 101 (-3.97) | 25.5 (1 .00) | (1 .35) () | 8.9 (-0.35) | ||||
| 46.03 (1-13/16) | 135 (-5.31) | 101 (-3.97) | 25.5 (1 .00) | 1 .35 () | 8.9 (-0.35) | ||||
| 41 .28 (1-5/8) | 135 (-5.31) | 135 (-5.31) | 25.5 (1 .00) | 34.4 (1 .35) | 8.9 (-0.35) | ||||
| 50.8 (-2) | 139 (-5.47) | 104 (-4.09) | 25.5 (1 .00) | 34.4 (1 .35) | 8.9 (-0.35) | ||||
| 55.58 (2-3/16) | 137 (-5.39) | 110 (-4.33) | 25.5 (1 .00) | 34.4 (1 .35) | 8.9 (-0.35) | ||||
| 60.33 (2-3/8) | 137 (-5.39) | 111 (-4.37) | 25.5 (1 .00) | 34.4 (1 .35) | 8.9 (-0.35) | ||||
| THL-4 | Ft.Lbs Nm | 443 608 | 4891 6733 | 65.1 (2-9/16) | 174 (-6.85) | 142 (-5.59) | 28.7 (1.13) | 49.5 (1.95) | 11.5 (-0.45) |
| 69.85 (2-3/4) | 176 (-6.93) | 142 (-5.59) | 28.7 (1.13) | 49.5 (1 .95) | 11.5 (-0.45) | ||||
| 74.63 (2-15/16) | 176 (-6.93) | 142 (-5.59) | 28.7 (1.13) | 49.5 (1 .95) | 11.5 (-0.45) | ||||
| THL-8 | Ft.Lbs Nm | 867 1192 | 9323 12834 | 53.98 (2-1/8) | 216 (-8.5) | 154 (-6.06) | 38 (1 .49) | 61.5 (-2.42) | 13.35 (-0.53) |
| 79.38 (3-1/8) | 216 (-8.5) | 154 (-6.06) | 38 (1 .49) | 61.5 (-2.42) | 14.45 (-0.57) | ||||
Frequently Asked Questions
What makes the THL Ultra-Slim Hydraulic Torque Wrench unique?
The THL Ultra-Slim is specifically designed for tight spaces where traditional wrenches cannot fit, offering the same high torque output in a much slimmer profile.
In what industries is the Ultra-Slim Wrench most commonly used?
What is the torque range of the THL Ultra-Slim?
Can the THL Ultra-Slim be used in both high and low-torque applications?
How easy is it to change the sockets on the THL Ultra-Slim Wrench?
Is the Ultra-Slim model durable enough for heavy-duty use?
How does the 360° reaction arm rotation improve its operation?
What maintenance is required for the Ultra-Slim Wrench?
